Object Sizing & Spatial Scaling

Sizing Methods Comparison

When an object is selected in Edit Mode, a highlighted bounding box appears surrounded by blue anchor nodes:

• Location: Enter Edit Mode > Tap the target object to reveal bounding guides.

• Corner Handles (Diagonal Resizing): - Dragging any of the four corner nodes expands or shrinks both the width and height simultaneously.
• Midpoint Handles (Horizontal / Vertical Stretching): - Dragging top or bottom nodes alters the vertical height; dragging left or right nodes alters the horizontal width independently.
• Touch Boundary vs. Visual Size: - Expanding the bounding box enlarges the interactive touch-target area on the screen. For vector shapes and backgrounds, the graphic expands to fill the boundary; for icon shortcuts, the icon remains centered within the enlarged touch zone unless internal scaling properties are adjusted.

Resizing the outer boundary does not always resize the graphic or text inside. Total Launcher separates the container boundaries from the rendered content:

Sizing Graphic Icons

• Location: Select object > Tap (Options) > Icon
• Icon size: - Scales the visual graphic dimensions independently of the touch boundary (e.g., standard baseline values range from 100 to 250).
• Icon padding: - Increases or decreases the inner clearance around the icon graphic within its bounding slot.

Sizing Typography & Labels

• Location: Select object > Tap (Options) > Label
• Font size: - Controls text point size (Range: 0 to 115).
  • 0 (Dynamic Auto-Fit): Automatically calculates the ideal font size based on available row height and bounding frame space (equivalent to a baseline of approximately 60).
  • 1 to 59: Enforces a fixed, smaller point size below the auto-fit baseline.
  • 60 to 115: Enforces an enlarged, fixed point size above the standard baseline.
• Scale X (%): - Stretches (101%–200%) or condenses (50%–99%) text horizontally to fit long names across single lines.

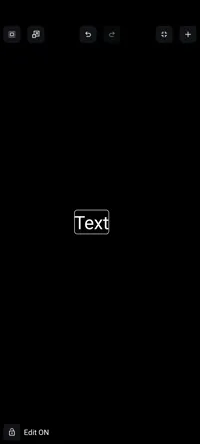

For shape objects, background containers, and graphic frames, inner Margins act as a proportional scaler:

• Location: Select object > Tap (Options) > Margins (or Background > Margins)

Margin Scaling Behavior

• Positive Margins (Shrink / Inset): - Increasing margin numbers (e.g., setting Left, Top, Right, Bottom to 20) pushes the graphic inward toward the center, effectively shrinking the rendered image while preserving the full touch-target boundary.
• Uniform Margins: - Applying identical values across all four edges scales the graphic up or down without distorting its aspect ratio.
• Asymmetrical Margins: - Entering different values on specific edges offsets the graphic to make room for accompanying text labels or secondary indicators.
